If you need efficient water-to-water or hydronic heat transfer, the right insulated plate heat exchanger can improve performance while reducing heat loss and installation hassle.
This roundup focuses on sizing, connections, and build quality so you can quickly match the right unit to your system.
Best 10 Insulated Plate Heat Exchangers Picks for 2026
Insulated Pick
80 Plate, Bracket & Insulation Kit
- 80 brazed plates for higher surface area
- Bracket and insulation kit included
- Stainless steel build for heating use
Best For: A bundled exchanger package with mounting help and insulation
High-Output Choice
- Counterflow design for efficient transfer
- 316 stainless steel with leak-tested brazing
- Includes mounting bracket for installation
Best For: Compact hydronic and radiant heating systems
Compact Insulated Value
- 20-plate, 5 x 12 in compact format
- Insulation kit included
- 1" MPT connection size
Best For: A compact insulated exchanger for 1-inch port setups
Heavy-Duty Runner-Up
- 316L stainless steel with copper brazing
- 170,000 to 330,000 BTU/hr capacity
- 20 plates with 1 1/4" MPT ports
Best For: Higher-capacity hydronic and boiler applications
Large-capacity pick
10x20 Brazed 20 Plate HX with Insulation Kit
- 20-plate brazed unit
- 1-1/2" MPT connections
- Insulation kit included
Best For: buyers needing a larger 20-plate unit with insulation included
Compact mount-ready pick
5x12 Brazed 20 Plate HX with Bracket & Insulation
- Compact 5" x 12" size
- Bracket included
- Insulation kit included
Best For: buyers wanting a smaller exchanger with mounting support
Simpler 10-plate pick
10x20 Brazed 10 Plate HX with Insulation Kit
- 10-plate brazed unit
- 1-1/2" MPT connections
- Insulation kit included
Best For: buyers who want a 10-plate version with insulation
Compact 30-Plate Pick
5x12 Brazed 30 Plate Heat Exchanger, 1" MPT
- 30 brazed plates
- Includes bracket and insulation kit
- 1" MPT connections
Best For: a compact 30-plate exchanger with 1" MPT ports and included mounting insulation
Largest-Port Option
5x12 Brazed 40 Plate Heat Exchanger, 1-1/4" MPT
- 40 brazed plates
- 1-1/4" MPT ports
- Includes bracket and insulation kit
Best For: systems needing 1-1/4" MPT connections with a 40-plate brazed exchanger
Balanced 40-Plate Pick
5x12 Brazed 40 Plate Heat Exchanger, 1" MPT
- 40 brazed plates
- 1" MPT connections
- Includes bracket and insulation kit
Best For: buyers wanting a 40-plate exchanger with 1" MPT connections and included accessories
Insulated Pick – 80 Plate, Bracket & Insulation Kit
If you’re comparing insulated plate heat exchangers for a hydronic or water-to-water setup, this 80-plate model stands out for package completeness. The included bracket and insulation kit make it easier to mount and help reduce unwanted heat loss, while the stainless steel construction is aimed at durable service in heating applications.
Best For: Buyers who want a high-plate-count exchanger bundled with a bracket and insulation kit for a cleaner install.
Pros:
- 80 brazed plates for a large heat-transfer surface
- Includes bracket and insulation kit
- Stainless steel construction
Cons:
- No detailed performance specs were supplied in the notes
- Application fit should be confirmed against your port and system requirements
Overall, this is a straightforward choice if you want an insulated plate heat exchanger package that emphasizes mounting convenience and thermal efficiency support through insulation. It’s best viewed as a hardware-plus-accessories option rather than a spec-heavy one.
High-Output Choice – VEVOR 20 Plate, 5 x 12 in
For shoppers looking at insulated plate heat exchangers in boiler or radiant floor applications, this VEVOR unit focuses on efficient heat transfer in a compact brazed-plate design. The 20-plate layout, 316 stainless steel construction, and included mounting bracket make it a practical option for water-to-water systems where reliable performance matters.
Best For: Hydronic, boiler, and radiant floor heating setups that need a compact 20-plate exchanger with strong thermal efficiency.
Pros:
- Counterflow design to improve heat transfer efficiency
- 20 plates and 5 x 12 in heat-transfer area
- 316 stainless steel construction with leak-tested brazing
- Suitable for domestic hot water, radiant floors, snow melting, and solar heating
Cons:
- Filter installation is recommended
- Not suitable for viscous liquids
This is a solid all-around pick if you want a compact water-to-water exchanger with broad application coverage. Its efficiency-focused design and corrosion-resistant materials make it especially appealing for common hydronic jobs.
Compact Insulated Value – 20 Plate, 1 in Ports
If you want insulated plate heat exchangers without moving up to a larger format, this 20-plate 5 x 12 in model is a simple, package-focused option. The supplied insulation kit and 1″ MPT connection size make it a practical fit for buyers who want a compact brazed exchanger with the basics included.
Best For: Buyers who need a smaller 20-plate exchanger with insulation included and 1-inch ports.
Pros:
- 20 brazed plates in a compact 5 x 12 in size
- Includes an insulation kit
- 1″ MPT connection size
Cons:
- No performance or material details were supplied in the notes
- Less information is available than on some competing models
As a roundup option, this model is best for buyers who prioritize included insulation and a manageable plate count over detailed specs. It keeps the buying decision simple if your system is already designed around 1-inch ports.
Heavy-Duty Runner-Up – SS316L 20 Plate, 1-1/4 in
Among insulated plate heat exchangers, this SS316L model is aimed at buyers who want a durable, high-capacity unit for hydronic and heating applications. Its 20 brazed plates, 1 1/4″ MPT ports, and stated 170,000 to 330,000 BTU/hr capacity make it a strong fit for more demanding system designs.
Best For: Hydronic heating, wood boiler, and solar heating setups needing a compact but higher-capacity exchanger.
Pros:
- 316L stainless steel with 99.9% copper brazing
- 20 plates and 1 1/4″ MPT connections
- Stated 170,000 to 330,000 BTU/hr capacity
- Wide application range including floor heating, snow melting, and district heating
Cons:
- No insulation kit is mentioned in the supplied notes
- Specific installation accessories are not detailed beyond the exchanger itself
This is a good fit if you want a high-capacity exchanger with clearly stated pressure, port, and application details. It’s the most spec-forward option here for users who need a robust stainless steel unit for heating and cooling transfers.
Large-capacity pick – 10×20 Brazed 20 Plate HX with Insulation Kit
This insulated plate heat exchanger is a brazed 20-plate unit with 1-1/2″ MPT connections and an included insulation kit. If you need a larger-format insulated plate heat exchanger for a single heat-transfer application, this model is built around a straightforward, all-in-one setup.
Best For: Buyers who want a 20-plate brazed exchanger with 1-1/2″ MPT connections and insulation included.
Pros:
- 20-plate brazed design
- 1-1/2″ MPT connections
- Includes an insulation kit
Cons:
- No bracket is listed in the supplied notes
- Only the provided specification details are available here
Overall, this is a practical pick if you want a larger insulated plate heat exchangers option with the insulation kit already included. The key buying point is the combination of the 20-plate brazed build and 1-1/2″ MPT ports.
Compact mount-ready pick – 5×12 Brazed 20 Plate HX with Bracket & Insulation
This insulated plate heat exchanger is a brazed 20-plate model with 1″ MPT connections, plus a bracket and insulation kit. For buyers comparing insulated plate heat exchangers in a smaller footprint, this option adds mounting support while keeping the setup package simple.
Best For: Buyers who want a compact 20-plate brazed exchanger with 1″ MPT connections, a bracket, and insulation.
Pros:
- 20-plate brazed construction
- 1″ MPT connections
- Bracket included
- Insulation kit included
Cons:
- Smaller 5″ x 12″ size may not suit larger setups
- Only the supplied product notes are available here
In practical terms, this model stands out for combining a compact size with both a bracket and insulation kit. If those included accessories matter, it is an easy-to-scan option in the insulated plate heat exchangers category.
Simpler 10-plate pick – 10×20 Brazed 10 Plate HX with Insulation Kit
This insulated plate heat exchanger is a brazed 10-plate unit with 1-1/2″ MPT connections and an included insulation kit. Among insulated plate heat exchangers, it offers a simpler 10-plate format for buyers who do not need the larger 20-plate configuration.
Best For: Buyers looking for a 10-plate brazed exchanger with 1-1/2″ MPT connections and insulation included.
Pros:
- 10-plate brazed design
- 1-1/2″ MPT connections
- Insulation kit included
Cons:
- Fewer plates than the 20-plate version
- No bracket is listed in the supplied notes
This is the straightforward choice if you want the same 1-1/2″ MPT connection size but in a 10-plate layout. The included insulation kit keeps it aligned with buyers shopping for insulated plate heat exchangers with a cleaner, simpler spec.

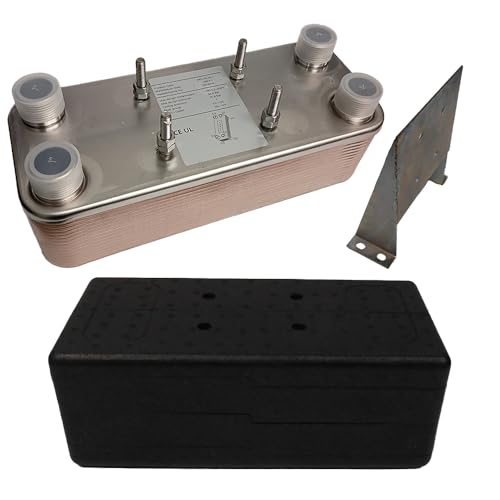

Compact 30-Plate Pick – 5×12 Brazed 30 Plate Heat Exchanger, 1" MPT
If you are comparing insulated plate heat exchangers for a compact setup, this 5″x12″ brazed 30 plate model is a straightforward option. It includes a bracket and insulation kit, and its 1″ MPT connections make it a clear fit for systems built around that port size.
Best For: Buyers who need a 30-plate brazed exchanger with 1″ MPT ports and a mounting/insulation kit.
Pros:
- 30-plate brazed design for a compact form factor
- Includes bracket and insulation kit
- 1″ MPT connections
Cons:
- Only one port size option listed
- Specific performance details are not provided in the notes
This model is best viewed as a simple, accessory-included choice when the 1″ MPT connection size matches your installation. The included bracket and insulation kit add convenience without adding complexity.

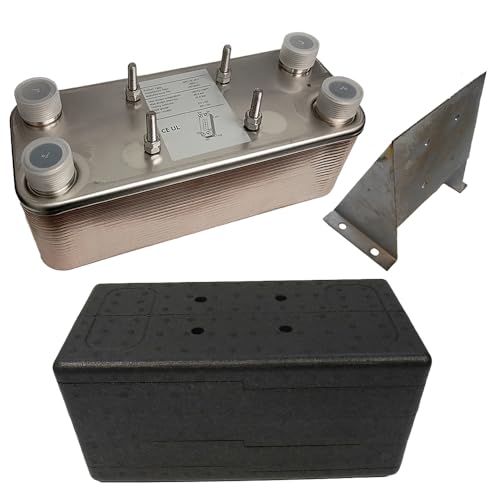

Largest-Port Option – 5×12 Brazed 40 Plate Heat Exchanger, 1-1/4" MPT
For shoppers comparing insulated plate heat exchangers with a larger connection size, this 5″x12″ brazed 40 plate unit stands out for its 1-1/4″ MPT ports. It also comes with a bracket and insulation kit, making it a practical pick when you want the extra plates and a more substantial port size.
Best For: Users who want a 40-plate brazed exchanger with 1-1/4″ MPT connections and included accessories.
Pros:
- 40-plate brazed construction
- 1-1/4″ MPT connections
- Bracket and insulation kit included
Cons:
- Only the listed port size is specified
- No detailed sizing or performance data in the notes
This is the most connection-heavy option in the group, so it makes sense if your system is built around 1-1/4″ MPT plumbing. The included bracket and insulation kit add convenience for a cleaner installation.
Balanced 40-Plate Pick – 5×12 Brazed 40 Plate Heat Exchanger, 1" MPT
This 5″x12″ brazed 40 plate model is another solid choice in insulated plate heat exchangers, but with 1″ MPT connections instead of the larger port variant. It includes both a bracket and insulation kit, so it is geared toward buyers who want the extra plate count while staying with a 1″ connection size.
Best For: Buyers who want a 40-plate brazed exchanger with 1″ MPT ports and included mounting/insulation hardware.
Pros:
- 40-plate brazed design
- 1″ MPT connections
- Bracket and insulation kit included
Cons:
- Port size may not suit larger-plumbed systems
- No additional specs are provided in the notes
Choose this version if you want the higher plate count but do not need the larger 1-1/4″ porting. The included bracket and insulation kit make it an easy installation-focused option.
How We Picked the Best Insulated Plate Heat Exchangers
We prioritized models that combine practical insulation, solid stainless-steel construction, and useful mounting hardware. For Insulated Plate Heat Exchangers, the biggest performance differences usually come from plate count, port size, and how well the unit matches the flow demands of the system.
We also looked for options suited to common hydronic and water-to-water applications, with attention to installation convenience and value across different system sizes.
Quick Comparison
In simple terms, smaller 5"x12" units with 20 to 40 plates are typically best for compact systems, while larger 10"x20" models are better when higher flow and greater transfer capacity are needed. Port size matters just as much as plate count: 1" and 1-1/4" ports fit many residential and light commercial setups, while 1-1/2" ports are a better match for higher-volume systems.
Key Buying Factors for Insulated Plate Heat Exchangers
Plate Count and Heat Load
More plates generally mean more transfer surface and better capacity, but the right choice still depends on temperature difference, flow rate, and target output. Oversizing is often safer than undersizing, especially in heating applications.
Port Size and Plumbing Compatibility
Choose port sizes that match your piping and pump capability. A mismatch can restrict flow, reduce efficiency, or complicate installation. Check whether your system is designed for 1", 1-1/4", or 1-1/2" connections before buying.
Insulation and Mounting
The insulation kit helps reduce standby losses and keeps the unit cleaner and more efficient in exposed mechanical spaces. A bracket can also make service access and wall mounting easier, which is especially helpful in tight utility rooms.
Materials and Durability
Look for brazed stainless-steel construction, and pay attention to whether the listing specifies SS316L or another grade. Better materials can improve corrosion resistance and long-term reliability in demanding water systems.
Who Should Buy Which Insulated Plate Heat Exchangers?
If you are building or upgrading a residential hydronic loop, a compact 5"x12" insulated unit with 20 to 40 plates is usually the most practical starting point. For larger homes, shop systems, or higher-flow applications, the 10"x20" options make more sense.
Buyers who want simpler installation should favor models that include both a bracket and insulation kit. If your priority is maximum compatibility, focus first on port size, then confirm the plate count and overall dimensions fit your system goals.
