When it comes to maintaining your boiler system, selecting the right temperature pressure gauge is essential for ideal performance. You want a gauge that guarantees accuracy and durability, allowing for proactive maintenance. In this discussion, we’ll explore eight top options that can enhance your boiler’s efficiency. Each gauge has unique features tailored to your needs, but which one will suit your setup best? Let’s find out.
MEANLIN MEASURE Thermal Pressure Gauge (0-160Psi)
The MEANLIN MEASURE Thermal Pressure Gauge is the ideal choice for professionals needing precise measurements in both air and liquid systems, as it features a robust pressure range of 0 to 160 Psi. With a temperature range of 30°F to 250°F, this gauge guarantees accurate readings for your boiler. Its 1/4″ NPT connection and 2.5″ dial face make installation straightforward, while the brass construction provides durability. Remember, it’s not suitable for corrosive substances. You’ll appreciate the included reset pointer and hex bushings, which enhance usability. Follow installation guidelines for maximum performance, and you’ll maintain your system’s efficiency seamlessly.
Best For: Professionals needing accurate pressure and temperature measurements in air and liquid systems.
Pros:
- Durable brass construction ensures longevity and reliability.
- Easy installation with standard 1/4″ NPT connection and 2.5″ dial face.
- Includes useful features like a reset pointer and hex bushings for enhanced usability.
Cons:
- Not suitable for measuring corrosive substances, limiting its application.
- Requires adherence to installation guidelines for optimal performance.
- Pressure range is limited to a maximum of 160 Psi, which may not meet all industrial needs.

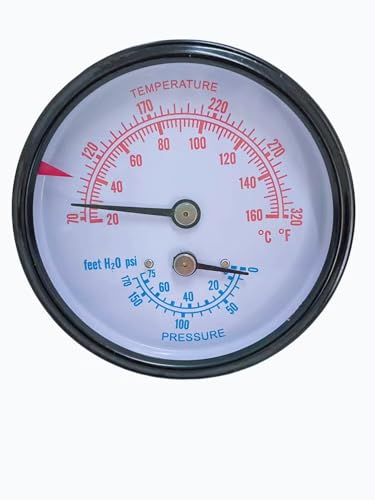

Replacement Boiler Gauge (2-1/2-inch dial, 0/75 PSI)
For those managing small industrial boilers or steam generators, the Replacement Boiler Gauge with a 2-1/2-inch dial and a pressure range of 0 to 75 PSI is an excellent choice. This compact gauge integrates pressure, temperature, and liquid level readings, replacing the need for multiple devices. It features a 1/4-inch Male NPT connection and an adjustable red line pointer for easy reference. With its mechanical design, you can quickly assess system status, enhancing inspection efficiency. Plus, the gauge’s minimal installation space requirement makes it perfect for tight environments, ensuring your system runs smoothly and safely.
Best For: Small industrial boiler and steam generator operators seeking an integrated solution for monitoring pressure, temperature, and liquid level.
Pros:
- Combines three critical safety parameters into one gauge, reducing the need for multiple devices.
- Compact design allows for installation in space-constrained environments.
- Mechanical interface provides quick and easy assessment of system status.
Cons:
- Limited pressure range of 0 to 75 PSI may not suit all boiler applications.
- Requires proper installation to ensure accurate readings and prevent leaks.
- Mechanical gauges may not offer the same precision as digital alternatives.
MEANLIN MEASURE Thermal Pressure Gauge (0-160Psi, 0-250℉)
Ideal for HVAC professionals and boiler technicians, the MEANLIN MEASURE Thermal Pressure Gauge offers a robust design that accurately measures both pressure and temperature in a wide range of applications. With a pressure range of 0-160 PSI and a temperature range of 30-250℉, it guarantees reliable readings for various fluids. The 2.5-inch dial face makes it easy to read, while the lower mount installation method simplifies setup. This gauge features durable brass connections, but remember, it’s not suitable for corrosive substances. For dependable performance in monitoring air and liquid systems, this gauge is a solid choice for your toolkit.
Best For: HVAC professionals and boiler technicians seeking a reliable gauge for measuring pressure and temperature in air and liquid systems.
Pros:
- Durable brass connections provide long-lasting performance.
- Easy-to-read 2.5-inch dial face for quick and accurate readings.
- Lower mount installation method simplifies setup and use.
Cons:
- Not suitable for use with corrosive substances.
- Nominal NPT thread sizes may differ from actual diameter, potentially complicating installation.
- Limited temperature range (30-250℉) may not meet all application needs.
MEANLIN MEASURE Stainless Steel Thermal Pressure Gauge
Crafted from durable stainless steel, the MEANLIN MEASURE Thermal Pressure Gauge is perfect for those seeking reliable temperature and pressure readings in both air and liquids. With a 2.5″ dial face and a 1/4″ NPT back mount installation, it’s designed for easy integration into your system. This gauge offers a temperature range of 30-250℉ and a pressure range of 0-160 Psi, ensuring versatility. Its brass connection part enhances durability, but remember, it’s not suitable for corrosive substances. The included 1/2″ NPT and 3/8″ NPT hex bushings make installation straightforward. Trust this gauge to keep your system running smoothly!
Best For: Those seeking reliable and durable temperature and pressure measurement solutions for air and liquids in non-corrosive environments.
Pros:
- Durable stainless steel construction ensures longevity and reliability.
- Wide temperature and pressure ranges (30-250℉ and 0-160 Psi) provide versatility for various applications.
- Easy installation with included 1/2″ NPT and 3/8″ NPT hex bushings.
Cons:
- Not suitable for corrosive substances, limiting its use in certain environments.
- Back mount installation may not be compatible with all systems.
- 1/4″ NPT thread size may require adapters for some applications.
MEASUREMAN Commercial Tridicator (2.5″ Dial, Dual Scale)
The MEASUREMAN Commercial Tridicator is a top choice for professionals seeking reliable performance in monitoring both pressure and temperature. With a 2.5″ dial featuring a dual scale, it accurately displays pressure from 0-75 PSI and temperature ranging from 70-320°F. Its rugged black steel case and corrosion-resistant brass internals guarantee durability, while the scratch-resistant glass window enhances longevity. You’ll appreciate the 360° rotatable case for easy viewing and the adjustable red pointer for quick reference to key operating limits. Designed for straightforward installation with a universal 1/4″ NPT back connection, it’s perfect for boilers, heating systems, and more.
Best For: The MEASUREMAN Commercial Tridicator is best for professionals in commercial and residential settings who need reliable monitoring of pressure and temperature in heating systems and plumbing.
Pros:
- Durable construction with a rugged black steel case and corrosion-resistant brass internals.
- Easy-to-read dual scale with a 360° rotatable case for optimal viewing.
- Quick monitoring enabled by an adjustable red pointer to track key operating limits.
Cons:
- Limited pressure range (0-75 PSI) may not meet the needs of high-pressure systems.
- Requires precise installation to ensure accurate readings.
- The 2.5″ dial size may be too small for some users looking for larger displays.
MEASUREMAN Commercial Tridicator Boiler Gauge Kit
If you’re looking for a reliable gauge for your boiler system, the MEASUREMAN Commercial Tridicator Boiler Gauge Kit stands out with its dual-display feature. This 2.5″ dial provides simultaneous readings for temperature (70-320°F) and pressure (0-200 PSI/ft H₂O), ensuring you monitor your system effectively. Its 360° rotatable case allows for easy viewing from any angle, while the adjustable red pointer helps you track precise measurements. Made with a durable steel case and corrosion-resistant brass components, this gauge promises longevity. It’s perfect for boilers and water tanks, making it a versatile choice for your heating system needs.
Best For: The MEASUREMAN Commercial Tridicator Boiler Gauge Kit is best for professionals and DIY enthusiasts seeking an efficient and durable monitoring solution for boilers and water tanks.
Pros:
- Dual-display feature allows for simultaneous monitoring of temperature and pressure.
- Durable steel construction and brass components enhance longevity and reliability.
- 360° rotatable case and adjustable pointer facilitate easy and precise readings.
Cons:
- The gauge’s size may be too large for compact installations.
- Limited temperature range (70-320°F) may not suit all applications.
- Installation may require additional tools and expertise for optimal setup.
MEASUREMAN Tridicator Thermo-Manometer Pressure Gauge
For those seeking a reliable solution to monitor both pressure and temperature in their systems, the MEASUREMAN Tridicator Thermo-Manometer Pressure Gauge stands out. With a 2-1/2 inch dial, it offers a pressure range of 0-160 psi and a temperature range of 30-250°F, ensuring versatility for various applications. Its robust black iron case and brass wetted parts make it durable and suitable for non-corrosive gases or liquids. Plus, it’s designed to handle environments with vibration and pulsation. With an accuracy of +/- 3-2-3%, you can trust that your readings will be precise, helping you maintain your system effectively.
Best For: The MEASUREMAN Tridicator Thermo-Manometer Pressure Gauge is best for technicians and engineers needing to monitor pressure and temperature in non-corrosive systems that experience vibration and pulsation.
Pros:
- Versatile Measurement: Offers a comprehensive range for both pressure (0-160 psi) and temperature (30-250°F).
- Durable Construction: Made with a robust black iron case and brass wetted parts, ensuring longevity and reliability.
- Designed for Tough Environments: Effectively handles conditions with vibration and pulsation, providing accurate readings.
Cons:
- Limited to Non-Corrosive Fluids: Not suitable for measuring corrosive gases or liquids, which may limit its application in some industries.
- Accuracy Margin: The accuracy of +/- 3-2-3% may not meet the requirements for highly precise applications.
- Size Constraints: The 2-1/2 inch dial may be too small for users who prefer larger, more visible gauges.
Commercial Tridicator Boiler Gauge Kit
Engineered for reliability, the Commercial Tridicator Boiler Gauge Kit is ideal for professionals who need accurate monitoring of both temperature and pressure in their systems. With a durable black steel case and corrosion-resistant brass core, this gauge is built to last. The 2.5-inch dual-display dial shows temperature from 70-320°F and pressure from 0-75 PSI, allowing for precise readings. You’ll appreciate the adjustable red line reference pointer, ensuring you always hit your targets. Plus, its standard 1/4” NPT back mount makes installation straightforward for boilers, water tanks, and other applications. Trust this kit to keep your system running smoothly.
Best For: Professionals in need of reliable temperature and pressure monitoring for boilers and water tanks.
Pros:
- Durable construction with a black steel case and corrosion-resistant brass core for long-lasting use.
- Dual-display dial allows for easy and accurate readings of temperature and pressure.
- Standard 1/4” NPT back mount simplifies installation across various applications.
Cons:
- Limited temperature range of 70-320°F may not suit all high-temperature applications.
- The plastic lens may be less durable than glass alternatives.
- Adjustable red line reference pointer might require calibration over time for precise accuracy.
Factors to Consider When Choosing Boiler Temperature Pressure Gauges
When choosing boiler temperature pressure gauges, you need to take into account several key factors. The pressure and temperature ranges must align with your system’s requirements, and the dial size should be easy to read. Additionally, verify the connection type is compatible and reflect on the best installation method for your setup.
Pressure Range Selection
Selecting the right pressure range for boiler temperature pressure gauges is essential for ideal system performance and safety. You’ll want a gauge that accommodates the maximum expected pressure, typically between 0-75 PSI or higher, depending on your specific application. Choosing a gauge with a pressure range exceeding the system’s maximum guarantees safety and helps prevent over-pressurization, which can lead to equipment failure or hazardous conditions. Keep in mind the operational pressure fluctuations; selecting a gauge that covers these variations will enhance accuracy and reliability. It’s also wise to opt for gauges that allow a margin above the normal operating pressure for unexpected surges. Always refer to the manufacturer’s specifications and industry standards to guarantee compatibility and compliance.
Temperature Range Considerations
Choosing the right pressure range for your boiler temperature pressure gauge is just one part of ensuring ideal performance. You need to evaluate the temperature range, which should effectively cover your system’s expected operating temperatures, typically between 30°F to 320°F. A gauge with a range extending beyond the maximum operating temperature enhances safety and protects the gauge from damage. Make sure the range aligns with the medium being measured—whether air, water, or other liquids—to maintain accuracy. For high-temperature applications, opt for gauges built with materials that resist thermal expansion and degradation. Selecting a gauge with a wide temperature range accommodates fluctuations, ensuring consistent performance across varying thermal environments.
Dial Size Importance
A boiler temperature pressure gauge’s dial size plays an essential role in ensuring ideal performance and user experience. Larger dials, like 2.5 inches, enhance readability and allow you to see measurements from a distance. They also provide more precise readings because they can accommodate finer scale divisions. When choosing a gauge, consider your installation space and personal preference; compact dials work well in tight spots, while larger dials are perfect for quick assessments in open environments. Additionally, a larger dial can improve durability, making it less prone to damage in high-stress situations. Ultimately, selecting the right dial size is fundamental for effective monitoring and maintaining your boiler’s efficiency.
Connection Type Compatibility
Compatibility of connection types is fundamental when you’re dealing with boiler temperature pressure gauges. Typically, you’ll need a 1/4″ NPT connection for standard installations. Confirm the connection material, often brass, is suitable for the medium being measured; avoid brass for corrosive substances. It’s imperative to verify the thread size of the gauge to guarantee a proper fit, as nominal pipe size doesn’t always match the actual diameter. Pay attention to gauge specifications. Additionally, while the installation method will be discussed later, keep in mind that it affects the gauge’s orientation and visibility in your setup. Finally, consider the depth of insertion and stem length, as these factors are essential for accurate readings, especially in tight spaces.
Installation Method Options
When selecting boiler temperature pressure gauges, the installation method plays a significant role in guaranteeing ideal performance and accessibility. You’ll find various installation options, like center back mount and lower mount configurations, tailored to your gauge design and application needs. Consider how easily you can access the gauge for reading measurements and maintenance; some designs feature a 360° rotatable case for better visibility. Don’t overlook the connection type, such as the common 1/4″ NPT, to guarantee compatibility with your piping system. Following proper installation guidelines is essential, as incorrect setups can lead to measurement errors. Finally, account for the insertion depth and stem length to fit the gauge correctly within your boiler, preventing installation complications.
Material Durability Factors
Choosing the right material for your boiler temperature pressure gauges is essential, as it directly affects their durability and performance. Brass is a popular choice for its corrosion resistance with non-corrosive substances, while stainless steel gauges excel in harsher environments, particularly with corrosive liquids. Consider a rugged black steel case, which can protect against physical impacts and enhance lifespan. Pay attention to internal components: bronze or brass can withstand high temperatures and pressures without degradation. Finally, gauges with liquid-filled designs reduce wear from vibrations, improving operational stability and extending service life. By selecting the appropriate materials, you can guarantee your gauges maintain their reliability and functionality over time, ultimately supporting your boiler system’s efficiency.
Safety Features Evaluation
Selecting the right boiler temperature pressure gauges goes beyond just material durability; safety features play an essential role in ensuring reliable operation. When evaluating options, consider models that monitor pressure, temperature, and liquid levels simultaneously. This minimizes installation points and reduces leak risks. Look for gauges with adjustable reference pointers for quick visual assessments and fixed reference markers on the lens for constant monitoring of safe operational parameters. Durability is key, so choose gauges made from corrosion-resistant brass and rugged steel casings. Finally, check the gauge’s accuracy specifications; a typical measurement accuracy of +/- 3% can greatly impact your system’s safety and efficiency in critical applications. Prioritizing these features will enhance your overall system reliability.
Accuracy and Precision
Accuracy and precision are critical factors in guaranteeing your boiler operates safely and efficiently. When choosing a gauge, look for one with an accuracy of ±2-3% of the full-scale reading, as this guarantees reliable performance. Precision is equally important; it lets you detect small changes in pressure and temperature that can impact safety. Regular calibration is essential to maintain accuracy over time, as wear and environmental conditions can affect readings. Opt for gauges with dual scales to monitor both pressure and temperature simultaneously, boosting safety and operational efficiency. Finally, select gauges designed for your specific pressure and temperature ranges to achieve maximum accuracy and avoid measurement errors that could compromise your boiler system.
